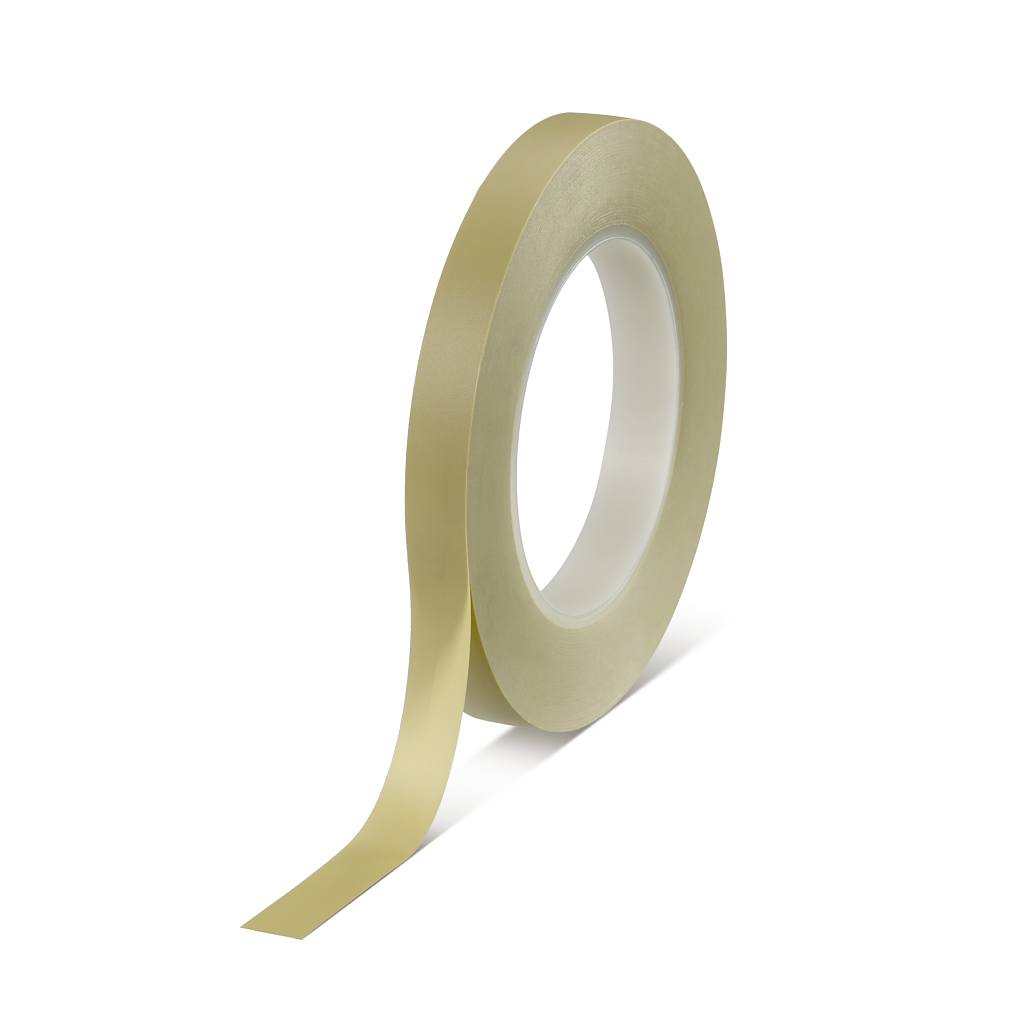

TESA 4174
High temperature fineline tape for design painting. Tesa® 4174 is a flexible, temperature resistant PVC fineline masking tape with a rubber adhesive for a wide range of design painting requirements
Price: Call Us!
Category :
Masking Tape
Brands : Tesa
- Description
- Additional Information
- no shrinking at high temperatures
- conforms to the dimensional change during oven-drying
- no edge lifting off and removable without leaving any residues
- good conformability to multi dimensional surfaces
Application Fields
Masking & Design, for wide range of fineline applications
Product Construction
| Backing material | PVC film |
| Total thickness | 110 µm |
| Type of adhesive | natural rubber |
| Adhesion to steel | 3.7 N/cm |
| Elongation at break | 200 % |
| Tensile strength | 25 N/cm |
| Temperature resistance | 150 °C |
| Temperature resistance (PP-EPDM) | 150 °C |
| Temperature resistance (paint) | 150 °C |
Properties / Performance Values
| Hand tearability | ++ |
| Easy to remove | yes |
| Suitable for die cutting | yes |
| Paint anchorage | ++ |
| Sharp colour edge | ++ |
| Powerwash resistance | ++ |
| Conformability | + |
| Flame retardant | ++ |
