Dynabelter® Finisher, Air-Powered, Accu-Grinder Abrasive Belt Tool

For Weld Grinding, Blending and Finishing on Metal and Other Surfaces

Dynabelter® is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.

• Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals.
• Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners.
• Safety-lock lever included on all models.

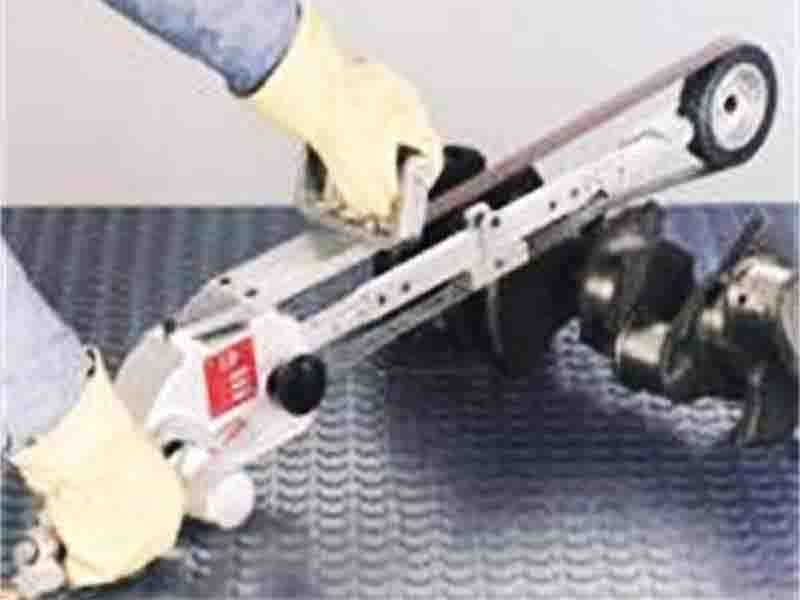

Model 11462 – Dynabelter Finisher Abrasive Belt Tool
.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1″ W x 60″ L (25 mm x 1,524 mm) Belts

• For 1″ (25) x 60″ (1,524) belts.
• Work off slack of belt or contact wheel.
• The 11601 Contact Arm Assembly reaches a full 20″ (508) and includes a 4″ (102) dia. X 1″ (25) wide 40-Durometer smooth rubber contact wheel and 1″ (25) x 2-1/2″ (63) L Dynapad platen (adjustable & removable).

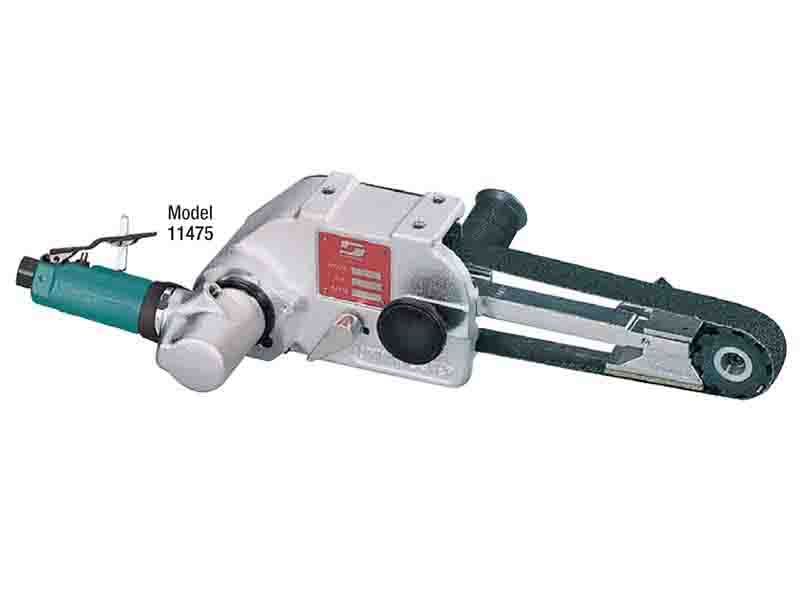

Model 11475 – Dynabelter Air-Powered Abrasive Belt Tool (Standard Duty)
.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4″-1″ W x 30″ L (6-25 mm x 762 mm) Belts

• For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
• Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
• Standard Duty, .7 hp model accepts 1″ wide x 30″ long abrasive belts. Adjustable speed; removable side handle.
• Includes 11681 Contact Arm Assembly.
• Ideal for use with 1/4″ Dynaswivel , and 95676 Coupler/Plug Assembly.

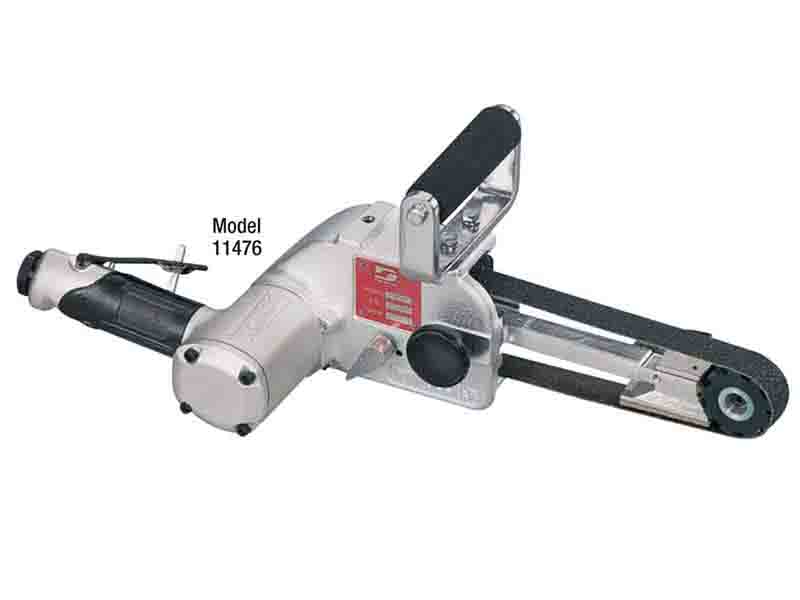

Model 11476 – Dynabelter Air-Powered Abrasive Belt Tool (Heavy-Duty)
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4″-1″ W x 30″ L (6-25 mm x 762 mm) Belts

• For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
• Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
• Heavy-Duty, 1.2 hp model accepts 1″ wide x 30″ long abrasive belts.
• Includes 11681 Contact Arm Assembly, and top control handle.
• Ideal for use with 3/8″ Dynaswivel, and 98265 Coupler/Plug Assembly.

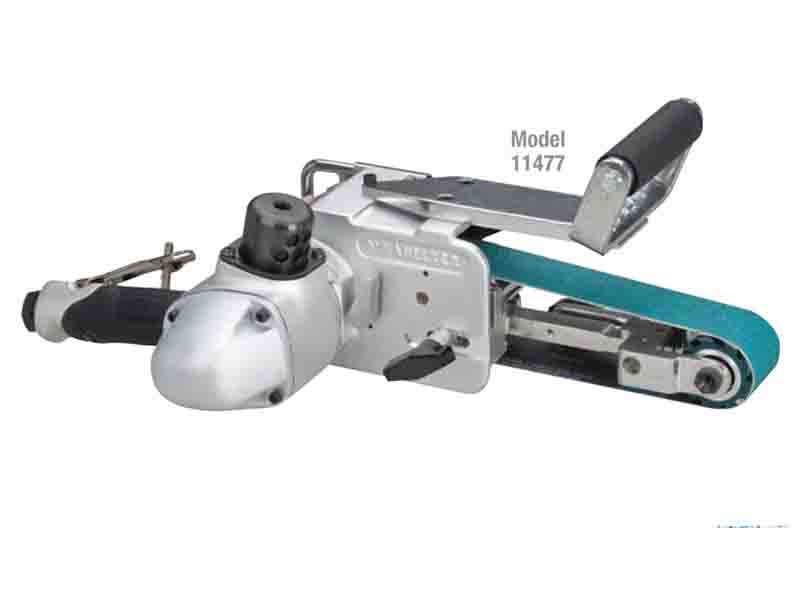

Model 11477 – Dynabelter Air-Powered Abrasive Belt Tool (Extra Heavy-Duty)
2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1″-2″ W x 30″ L (25-51 mm x 762 mm) Belts

• For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
• Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
• Extra Heavy-Duty, 2.0 hp model accepts 2″ wide x 30″ long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
• 11871 Contact Arm with 4″ dia. contact wheel is available for 2″ wide x 60″ long belts, providing a 20″ workable reach. Optional 11891 Platen is available for 11871 Arm.
• Ideal for use with 1/2″ Dynaswivel, and 98273 Coupler/Plug Assembly.

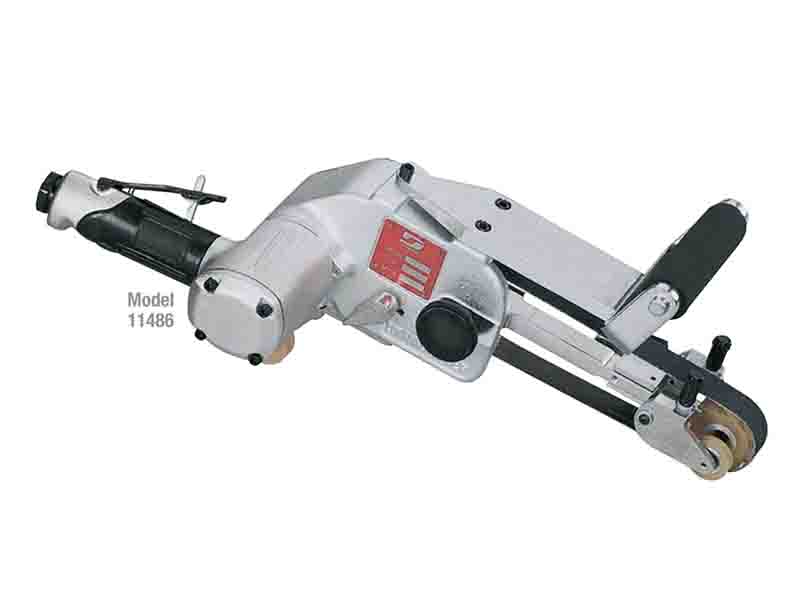

Model 11486 – Dynabelter Accu-Grinder Abrasive Belt Tool (Heavy-Duty)
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1″ W x 30″ L (25 mm x 762 mm) Belts

• Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow ‘in-line’ scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
• Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
• Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2″ diameter x 1″ wide.
• Work on Longitudinal Welds; I.D; 12″ diameter pipe or larger.; O.D; 8″ diameter pipe or larger.
